Reference Specification

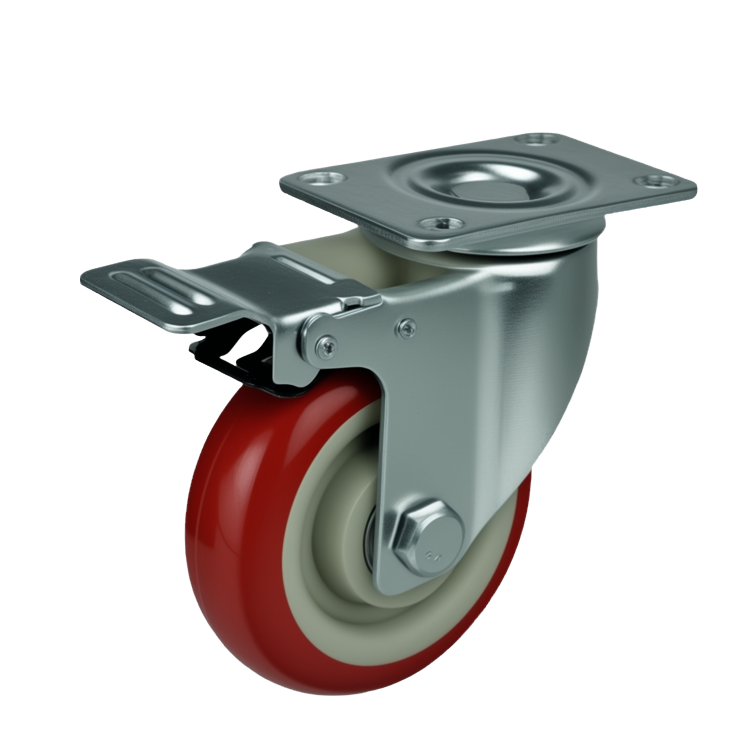

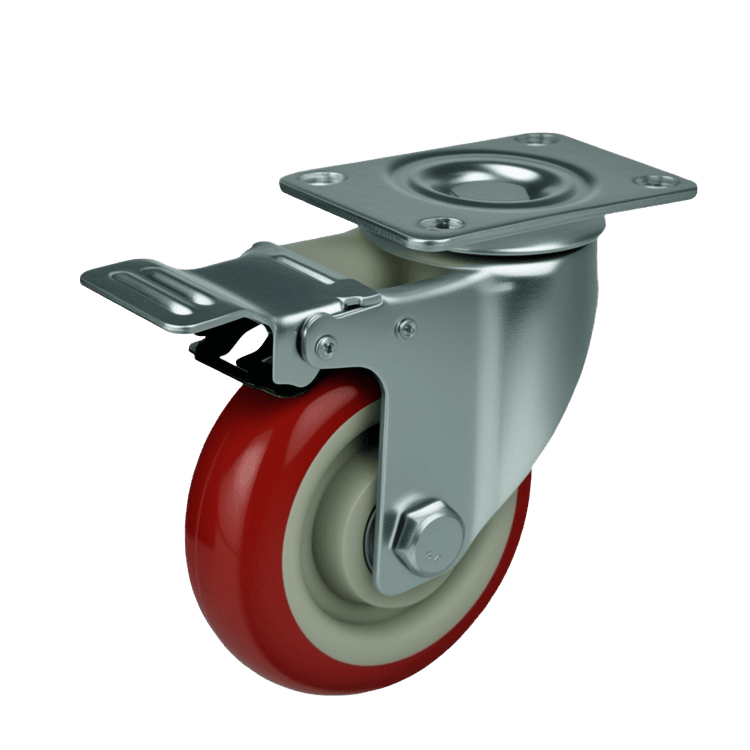

Medium Duty PU Castor Wheel (Plate Mount) — 5" Top Brake
MPDT-PU5
Load Capacity
120 KG
Wheel Material
Polyurethane
Wheel Size
5" (125mm)
Bearing Type
Double Ball Bearing
Stainless Available
This model can be supplied with 304 Grade Stainless hardware for washdown environments.
SKU ARCHIVE: MPDT-PU5 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | MPDT-PU5 |
| Load Capacity | 120 kg |
| Wheel Material | Polyurethane |
| Bracket Type | Top Brake |
| Bearing Type | Double Ball Bearing |
| Wheel Diameter | 125 mm |
| Wheel Width | 32 mm |
| Hub Bore | ⌀12 mm |
| Hub Length | 30 mm |
| Overall Height | 127 mm |
| Top Plate Size | 79x62 |
| Hole Spacing | 72x44 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | industrial, medical, food-processing, commercial |
Engineering Notes.
Medium-duty 3-inch red polyurethane castor wheel with double ball bearing. Hard-wearing PU compound protects floors. Zinc-plated top plate swivel configuration. 80kg load capacity.
Non-Standard Specs?
"We stock many variants not shown online. We can source custom systems from our principals within 10 days."
