Reference Specification

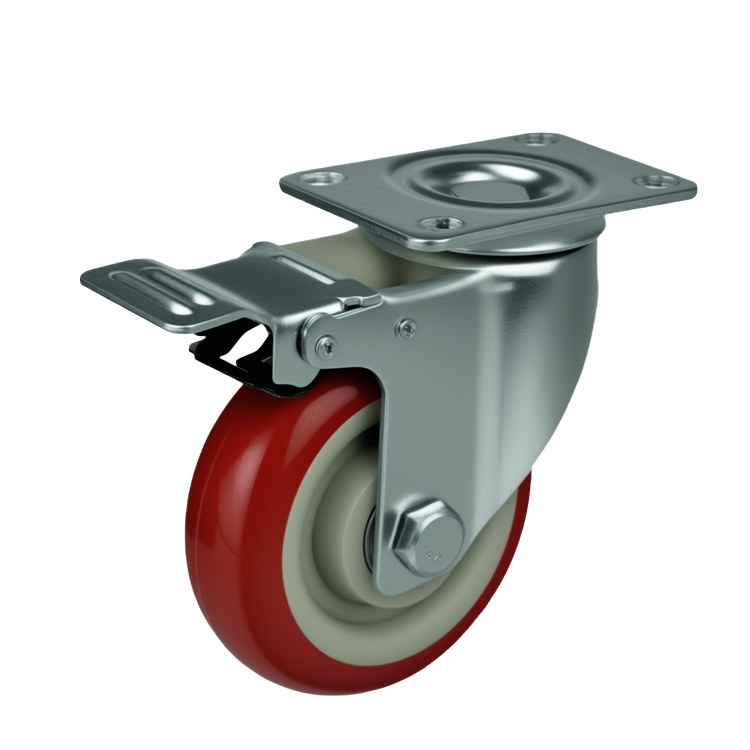

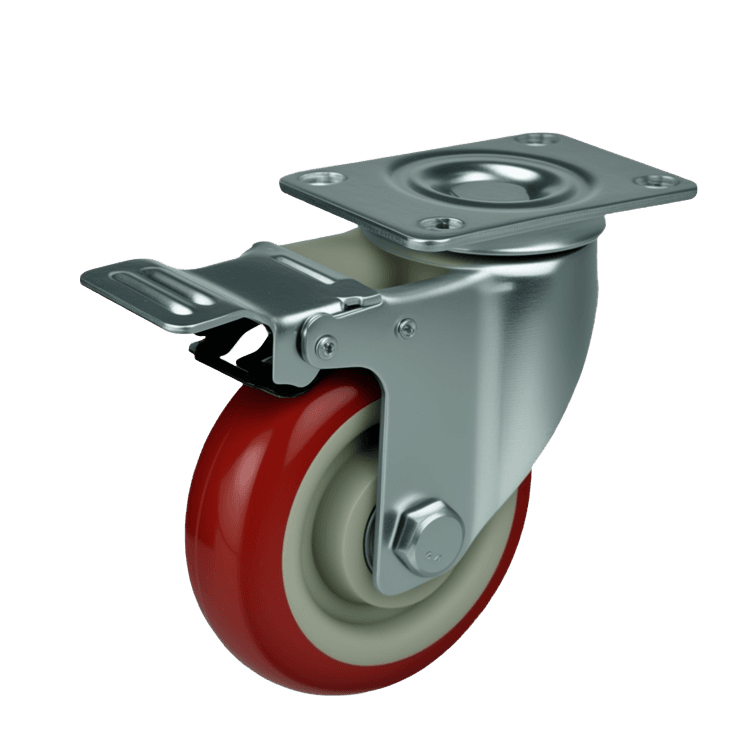

Medium Duty PU Castor Wheel (Plate Mount) — 3" Top Brake
MPDT-PU3
Load Capacity
80 KG
Wheel Material
Polyurethane
Wheel Size
3" (75mm)
Bearing Type
Double Ball Bearing
Stainless Available
This model can be supplied with 304 Grade Stainless hardware for washdown environments.
SKU ARCHIVE: MPDT-PU3 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | MPDT-PU3 |
| Load Capacity | 80 kg |
| Wheel Material | Polyurethane |
| Bracket Type | Top Brake |
| Bearing Type | Double Ball Bearing |
| Wheel Diameter | 75 mm |
| Wheel Width | 32 mm |
| Hub Bore | ⌀12 mm |
| Hub Length | 30 mm |
| Overall Height | 97 mm |
| Top Plate Size | 79x62 |
| Hole Spacing | 72x44 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | industrial, medical, food-processing, commercial |
Engineering Notes.
Medium-duty 3-inch red polyurethane castor wheel with double ball bearing. Hard-wearing PU compound protects floors. Zinc-plated top plate swivel configuration. 80kg load capacity.
