Reference Specification

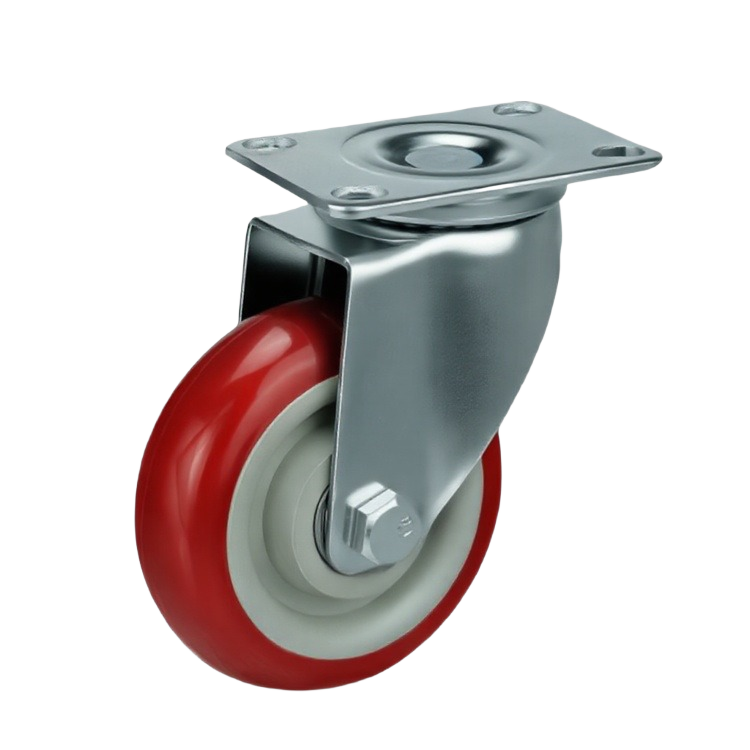

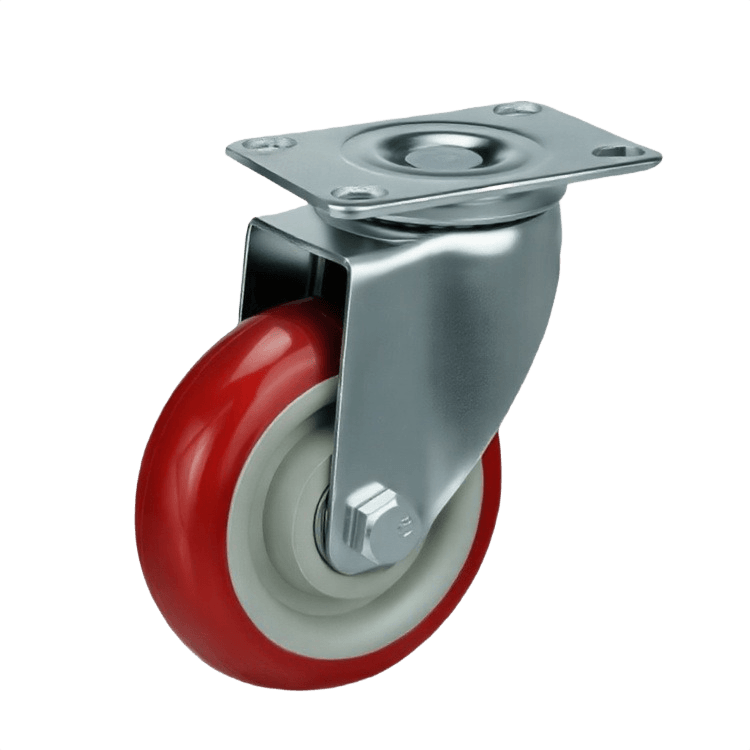

Medium Duty PU Castor Wheel (Plate Mount) — 5" Swivel
MPDS-PU5
Load Capacity
120 KG
Wheel Material
Polyurethane
Wheel Size
5" (125mm)
Bearing Type
Double Ball Bearing
Stainless Available
This model can be supplied with 304 Grade Stainless hardware for washdown environments.
SKU ARCHIVE: MPDS-PU5 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | MPDS-PU5 |
| Load Capacity | 120 kg |
| Wheel Material | Polyurethane |
| Bracket Type | Swivel |
| Bearing Type | Double Ball Bearing |
| Wheel Diameter | 5" (125 mm) |
| Wheel Width | 32 mm |
| Hub Bore | ⌀12 mm |
| Hub Length | 30 mm |
| Overall Height | 127 mm |
| Top Plate Size | 79x62 |
| Hole Spacing | 72x44 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | industrial, medical, food-processing, commercial |
Engineering Notes.
5-inch (125×32mm) red polyurethane castor with swivel top-plate (79x62mm) bracket and double ball bearing. Rated 120kg per castor. Hard-wearing PU compound protects floors.
Non-Standard Specs?
"We stock many variants not shown online. We can source custom systems from our principals within 10 days."
