Reference Specification

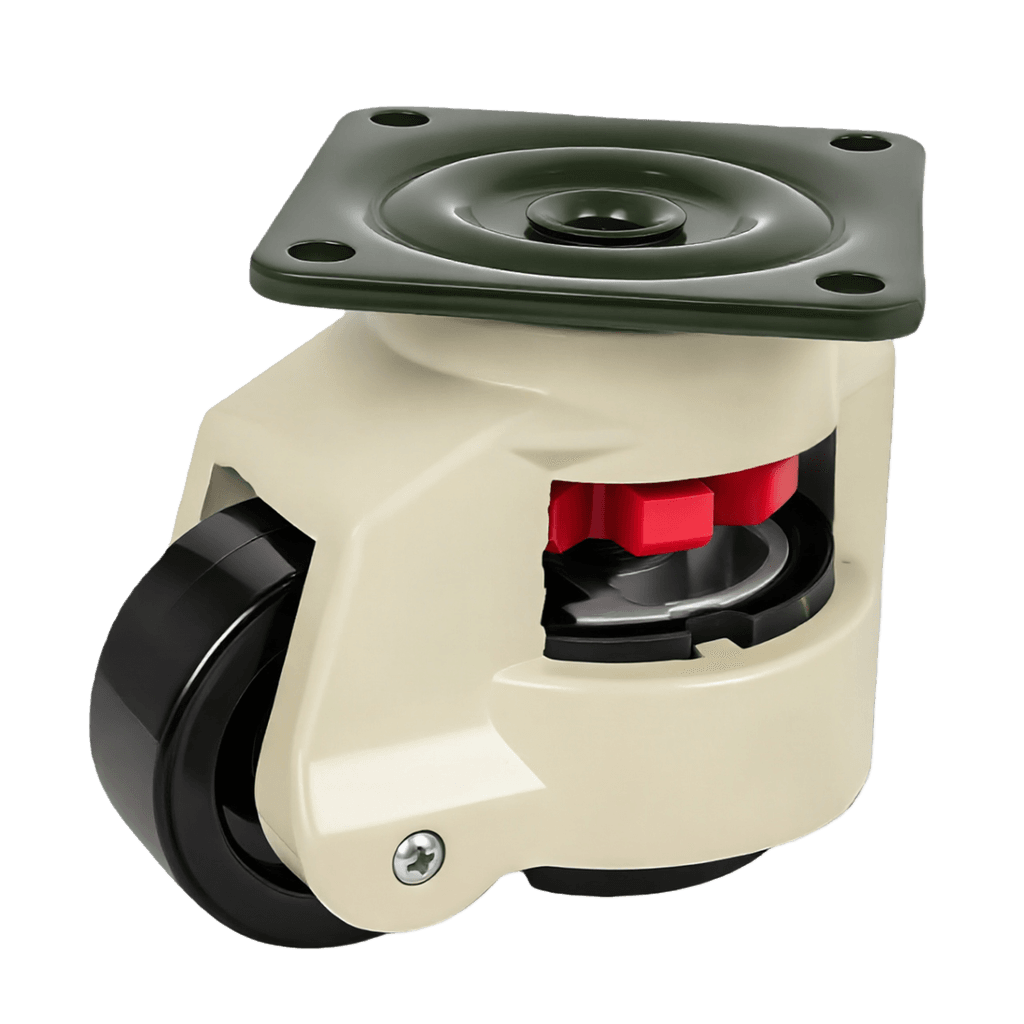

Levelling Castor (Plate Mount) — 2.5" / 63mm, 500kg
FM-80F
Load Capacity
500 KG
Wheel Material
MC Nylon
Wheel Size
2.5" (63mm)
Bearing Type
Double Ball Bearing
SKU ARCHIVE: FM-80F · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | FM-80F |
| Load Capacity | 500 kg |
| Wheel Material | MC Nylon |
| Bracket Type | Rigid |
| Bearing Type | Double Ball Bearing |
| Wheel Diameter | 2.5" (63 mm) |
| Wheel Width | 28 mm |
| Hub Bore | — |
| Hub Length | — |
| Overall Height | 102 mm |
| Top Plate Size | 70x70 |
| Hole Spacing | 92x92 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | levelling, machine-levelling, vibration-isolation, equipment |
Engineering Notes.
Levelling castor with 2.5-inch (63×28mm) MC Nylon wheel and adjustable levelling foot, top plate 70x70mm, hole spacing 92x92mm. Rated 500kg per unit. Ideal for machinery levelling and vibration isolation.
