Reference Specification

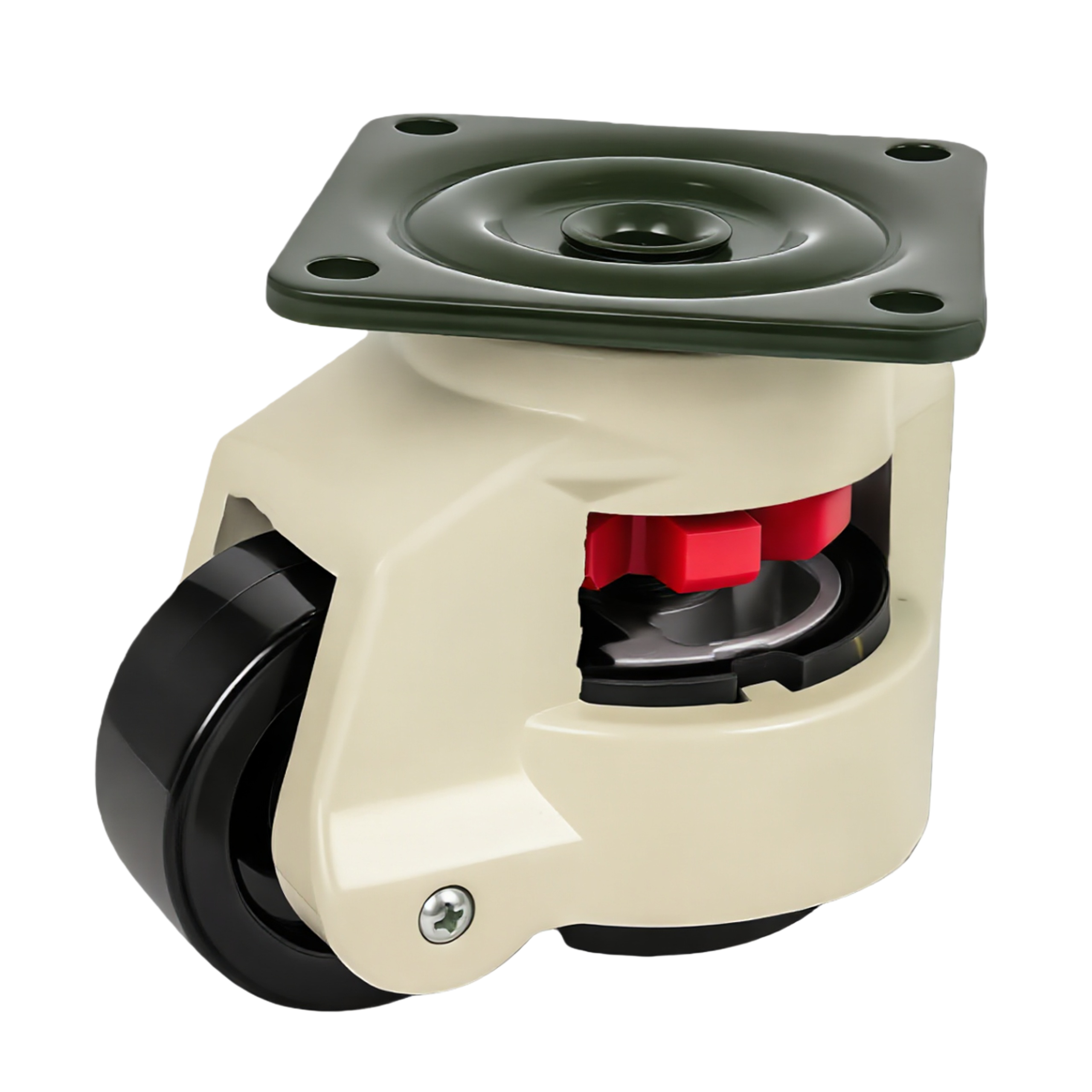

Levelling Castor (Plate Mount) — 2" / 50mm, 250kg
FM-60F
Load Capacity
250 KG
Wheel Material
MC Nylon
Wheel Size
2" (50mm)
Bearing Type
Double Ball Bearing
SKU ARCHIVE: FM-60F · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | FM-60F |
| Load Capacity | 250 kg |
| Wheel Material | MC Nylon |
| Bracket Type | Rigid |
| Bearing Type | Double Ball Bearing |
| Wheel Diameter | 2" (50 mm) |
| Wheel Width | 25 mm |
| Hub Bore | — |
| Hub Length | — |
| Overall Height | 82 mm |
| Top Plate Size | 58x58 |
| Hole Spacing | 73x73 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | levelling, machine-levelling, vibration-isolation, equipment |
Engineering Notes.
Levelling castor with 2-inch (50×25mm) MC Nylon wheel and adjustable levelling foot, top plate 58x58mm, hole spacing 73x73mm. Rated 250kg per unit. Ideal for machinery levelling and vibration isolation.
Non-Standard Specs?
"We stock many variants not shown online. We can source custom systems from our principals within 10 days."
