Reference Specification

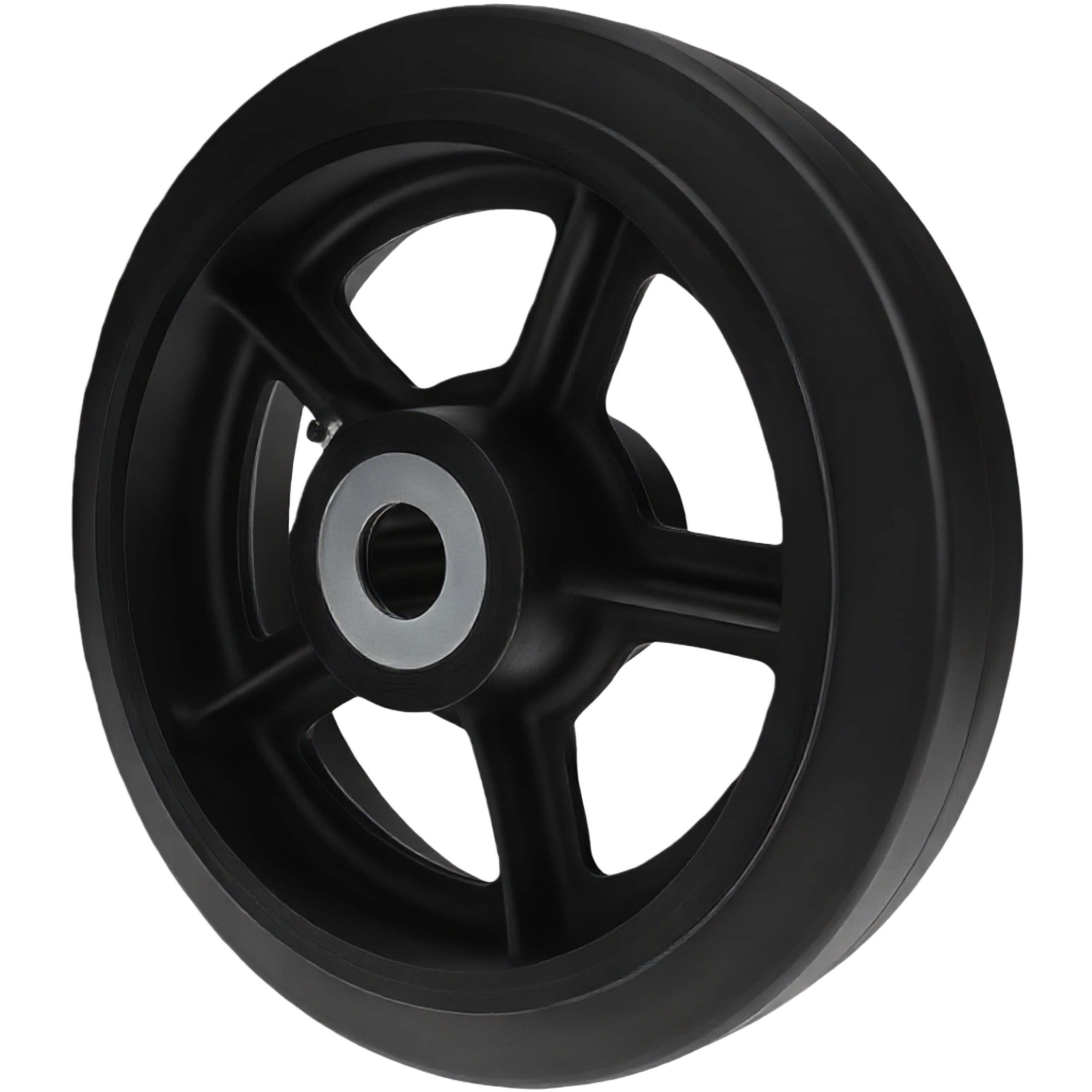

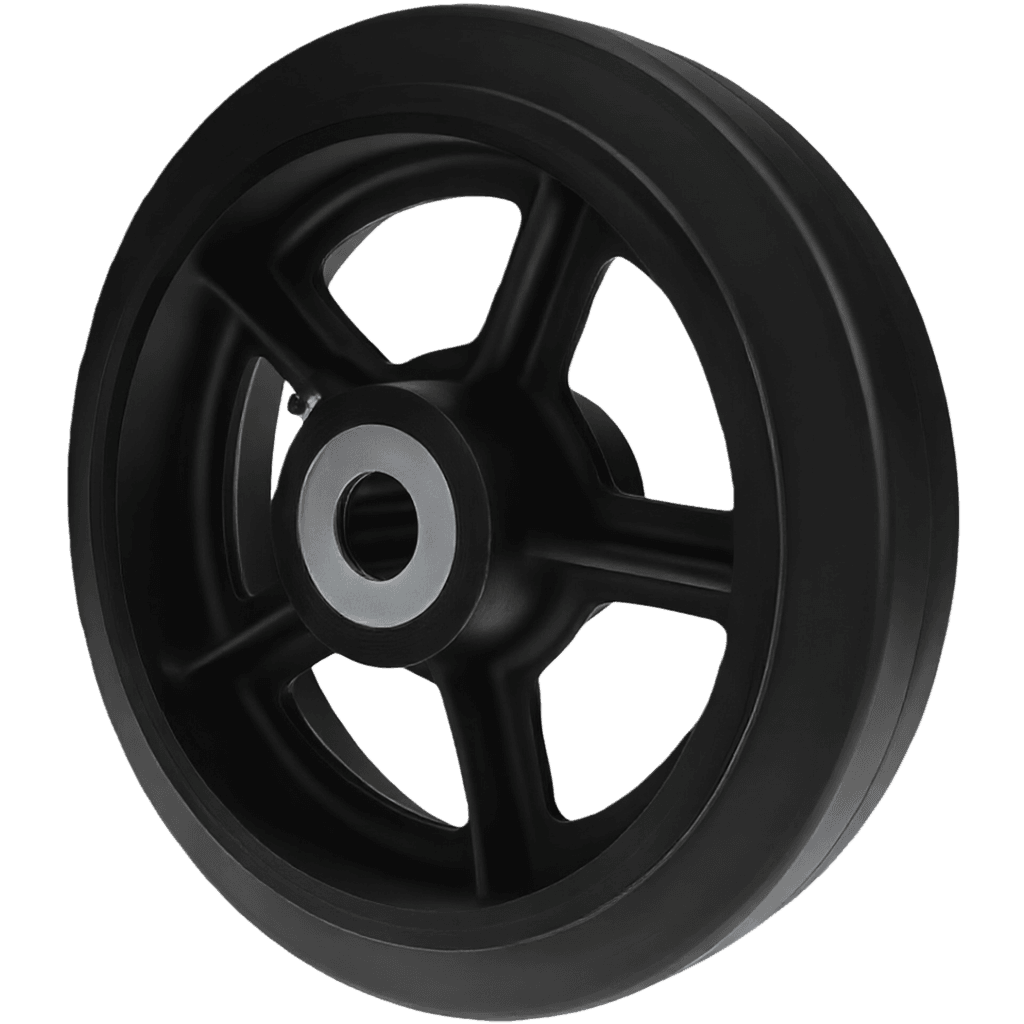

Scaffolding Rubber Wheel — 7" (Wheel Only)
CRB7
Load Capacity
250 KG
Wheel Material
Rubber
Wheel Size
7" (200mm)
Bearing Type
Roller Bearing
SKU ARCHIVE: CRB7 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | CRB7 |
| Load Capacity | 250 kg |
| Wheel Material | Rubber |
| Bracket Type | None (replacement wheel only) |
| Bearing Type | Roller Bearing |
| Wheel Diameter | 7" (200 mm) |
| Wheel Width | 30 mm |
| Hub Bore | ⌀13 mm |
| Hub Length | 63 mm |
| Overall Height | — |
| Top Plate Size | — |
| Hole Spacing | — |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | scaffolding, construction, work-platform, heavy-duty |
Engineering Notes.
Replacement 7-inch (200×30mm) rubber scaffolding wheel — sold as a wheel only (no bracket). Roller bearing. Rated 250kg.
Non-Standard Specs?
"We stock many variants not shown online. We can source custom systems from our principals within 10 days."
