Reference Specification

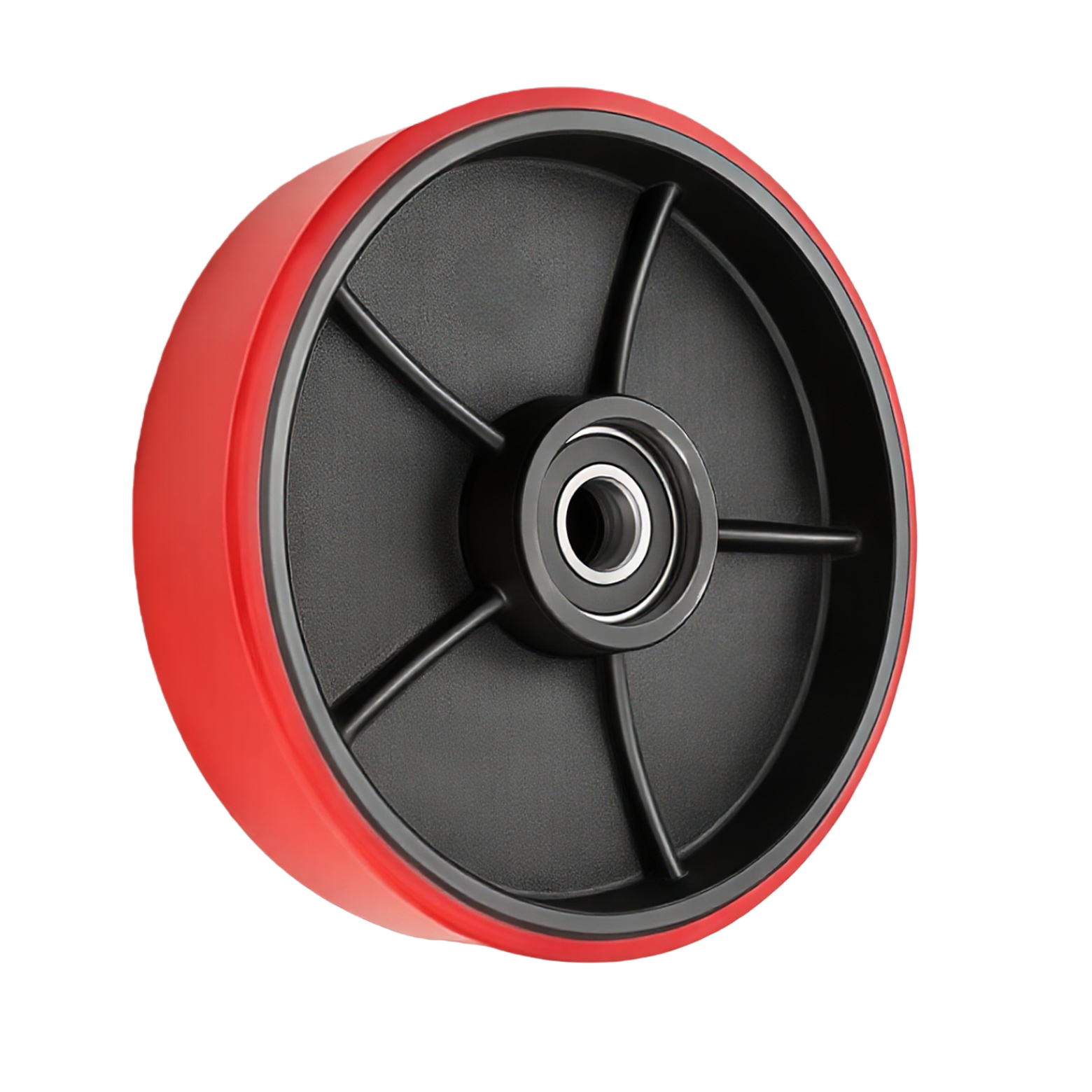

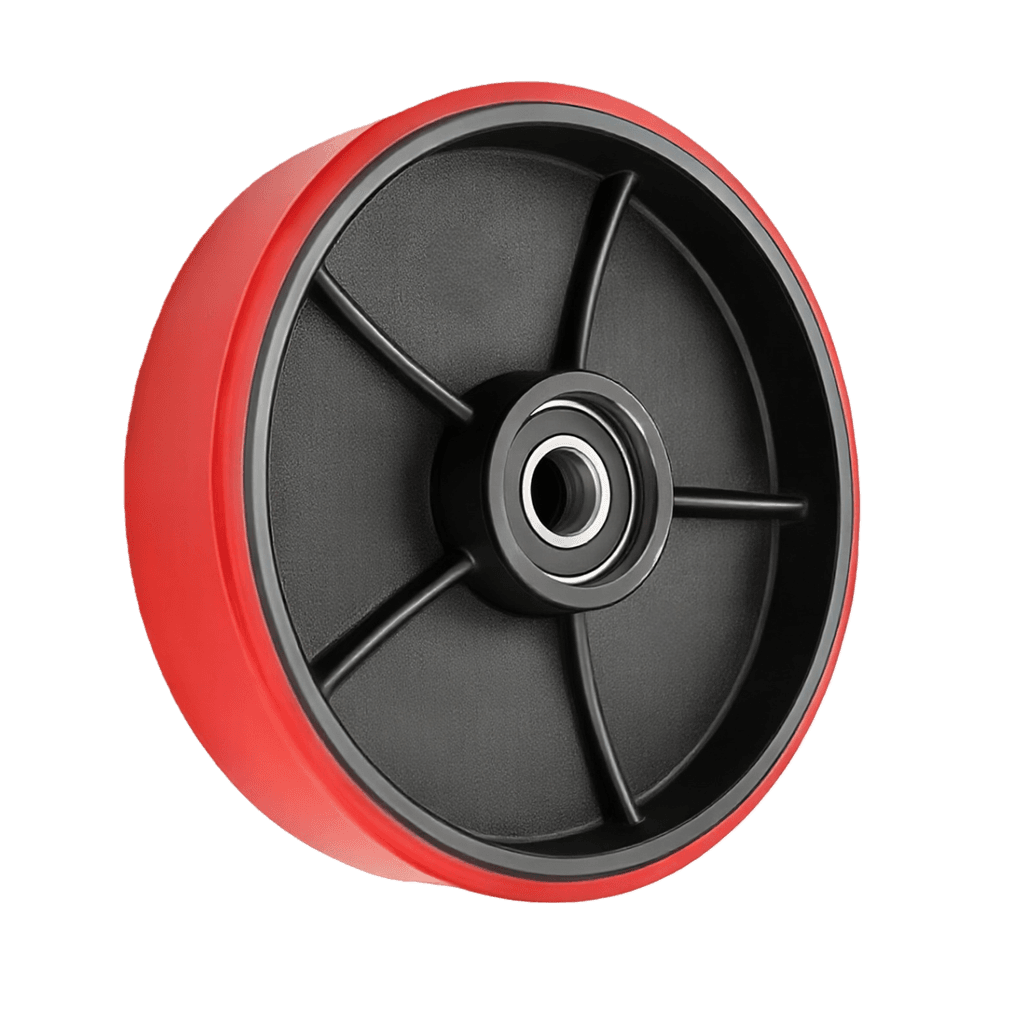

Pallet Truck PU Steering Wheel — 200mm
SPPU-200
Wheel Size
Load Capacity
1000 KG
Wheel Material
Polyurethane
Wheel Size
8" (200mm)
Bearing Type
Double Ball Bearing
SKU ARCHIVE: SPPU-200 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | SPPU-200 |
| Load Capacity | 1000 kg |
| Wheel Material | Polyurethane |
| Bracket Type | None (replacement wheel only) |
| Bearing Type | Double Ball Bearing |
| Wheel Diameter | 8" (200 mm) |
| Wheel Width | 50 mm |
| Hub Bore | ⌀20 mm |
| Hub Length | 50 mm |
| Overall Height | — |
| Top Plate Size | — |
| Hole Spacing | — |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | pallet-truck, material-handling, forklift, replacement-wheel |
Engineering Notes.
Replacement 8-inch (200×50mm) polyurethane steering wheel for pallet trucks — sold as a wheel only (no bracket). 20mm bore, 50mm hub length, double ball bearing. Rated 1000kg.
Non-Standard Specs?
"We stock many variants not shown online. We can source custom systems from our principals within 10 days."
