Reference Specification

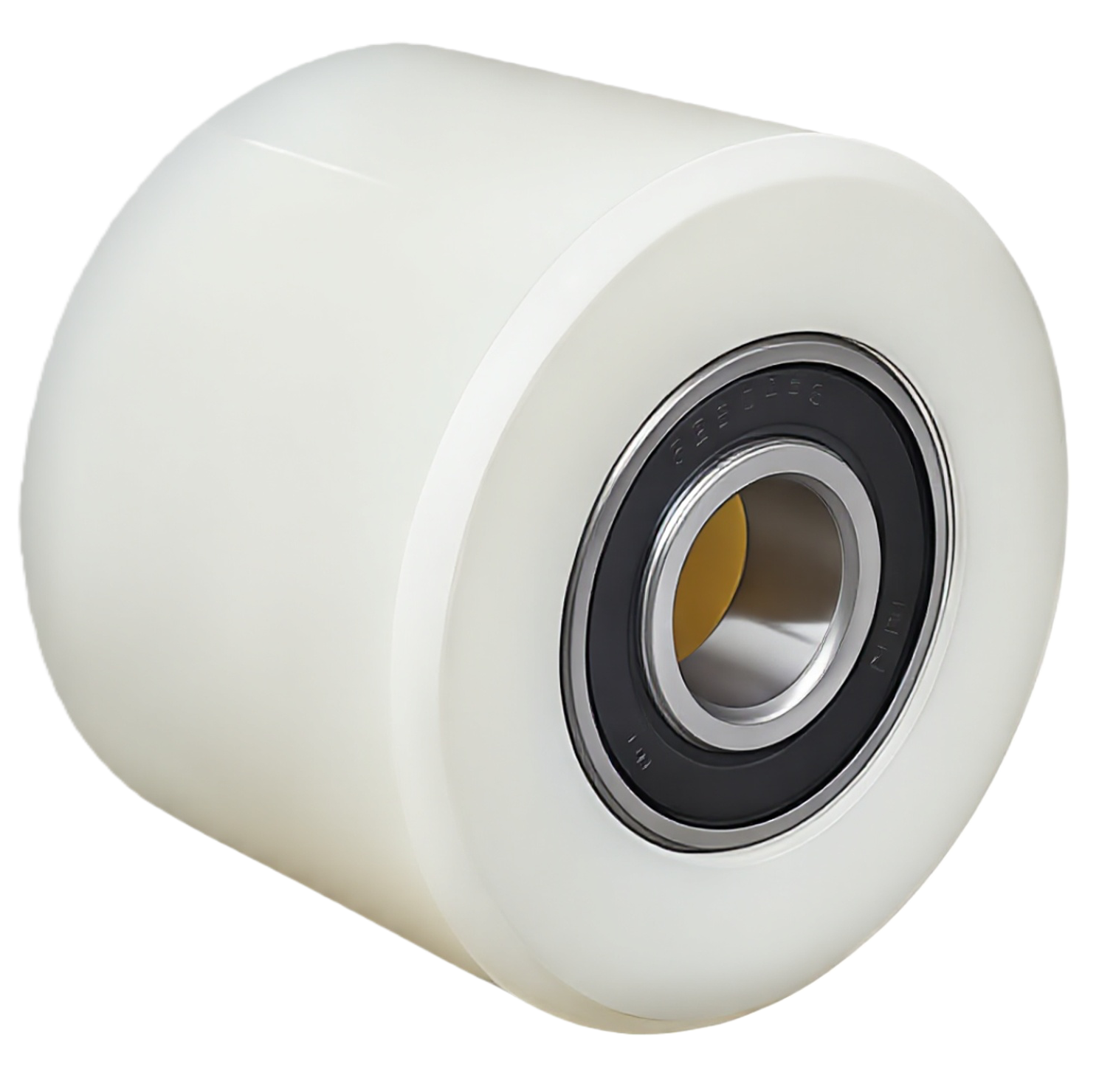

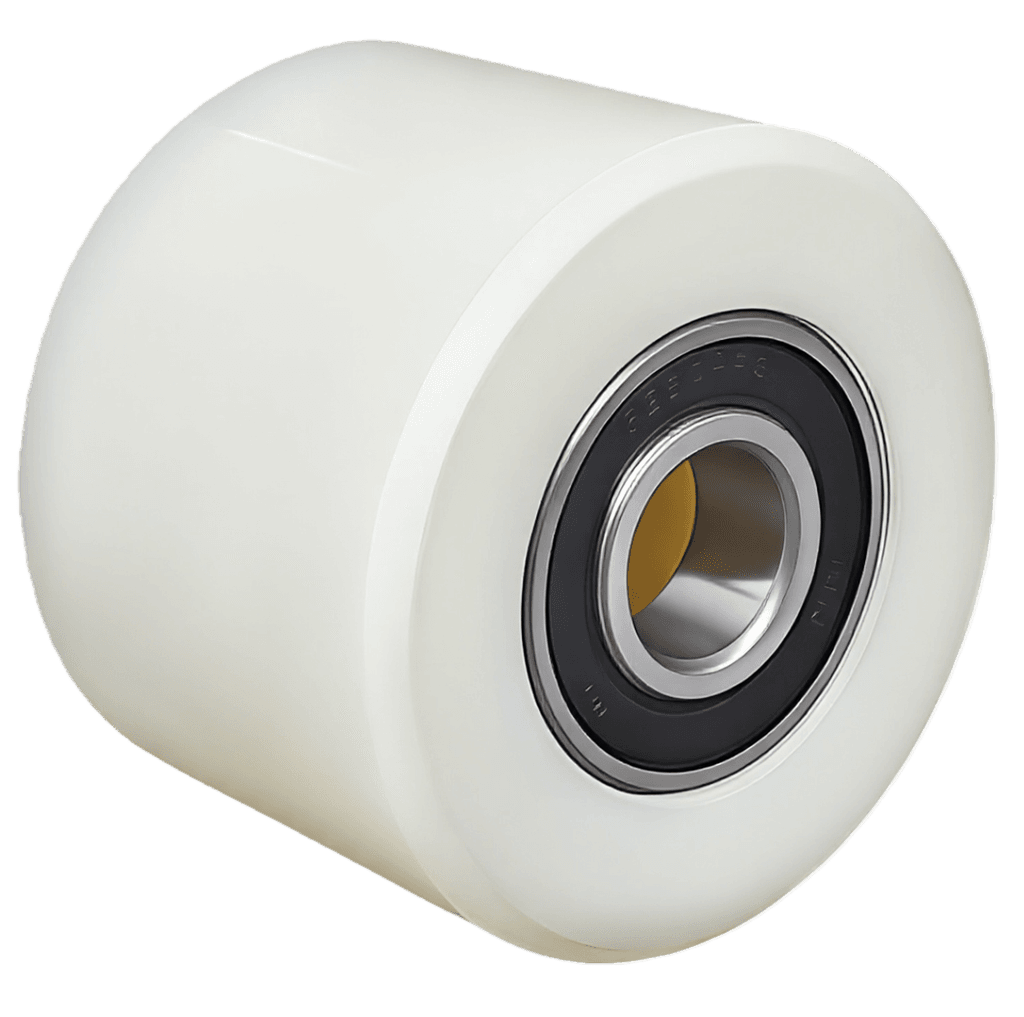

Pallet Truck Nylon Load Wheel — 80×100mm
PNW-100
Load Capacity
1000 KG
Wheel Material
MC Nylon
Wheel Size
3" (80mm)
Bearing Type
Double Ball Bearing
SKU ARCHIVE: PNW-100 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | PNW-100 |
| Load Capacity | 1000 kg |
| Wheel Material | MC Nylon |
| Bracket Type | None (replacement wheel only) |
| Bearing Type | Double Ball Bearing |
| Wheel Diameter | 3" (80 mm) |
| Wheel Width | 100 mm |
| Hub Bore | ⌀20 mm |
| Hub Length | 100 mm |
| Overall Height | — |
| Top Plate Size | — |
| Hole Spacing | — |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | pallet-truck, material-handling, forklift, replacement-wheel |
Engineering Notes.
Replacement 3-inch (80×100mm) MC Nylon load wheel for pallet trucks — sold as a wheel only (no bracket). 20mm bore, 100mm hub length, double ball bearing. Rated 1000kg.
