Reference Specification

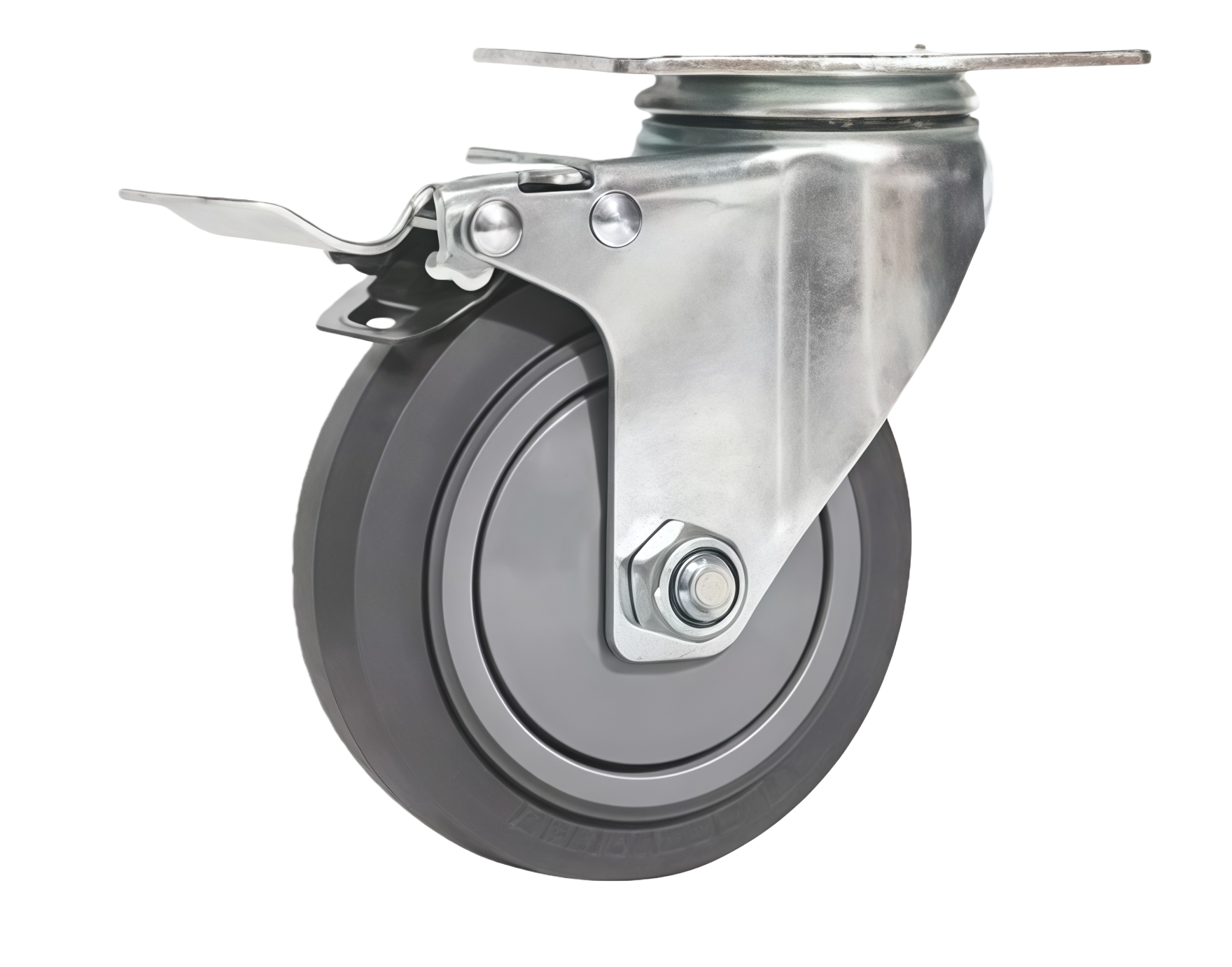

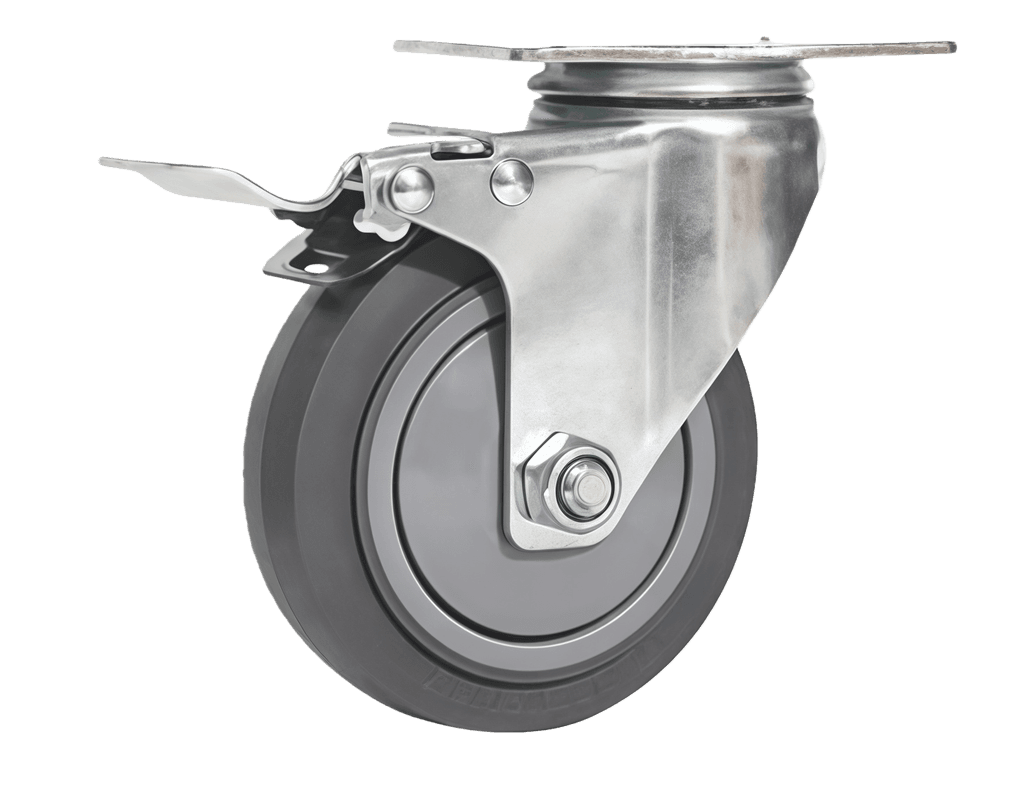

Medium Duty TPR Castor Wheel — 3" Top Brake
MPST-TPR3
Load Capacity
70 KG
Wheel Material
TPR
Wheel Size
3" (75mm)
Bearing Type
Single Ball Bearing
SKU ARCHIVE: MPST-TPR3 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | MPST-TPR3 |
| Load Capacity | 70 kg |
| Wheel Material | TPR |
| Bracket Type | Top Brake |
| Bearing Type | Single Ball Bearing |
| Wheel Diameter | 3" (75 mm) |
| Wheel Width | 32 mm |
| Hub Bore | ⌀15 mm |
| Hub Length | 40 mm |
| Overall Height | 120 mm |
| Top Plate Size | 92x62 |
| Hole Spacing | 75x45 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | quiet-rolling, medical, office, floor-protection |
Engineering Notes.
3-inch (75×32mm) grey TPR castor with top brake top-plate (92x62mm) bracket and single ball bearing. Rated 70kg per castor. Ultra-soft thermoplastic rubber for silent, gentle rolling on sensitive floors.
Non-Standard Specs?
"We stock many variants not shown online. We can source custom systems from our principals within 10 days."
