Reference Specification

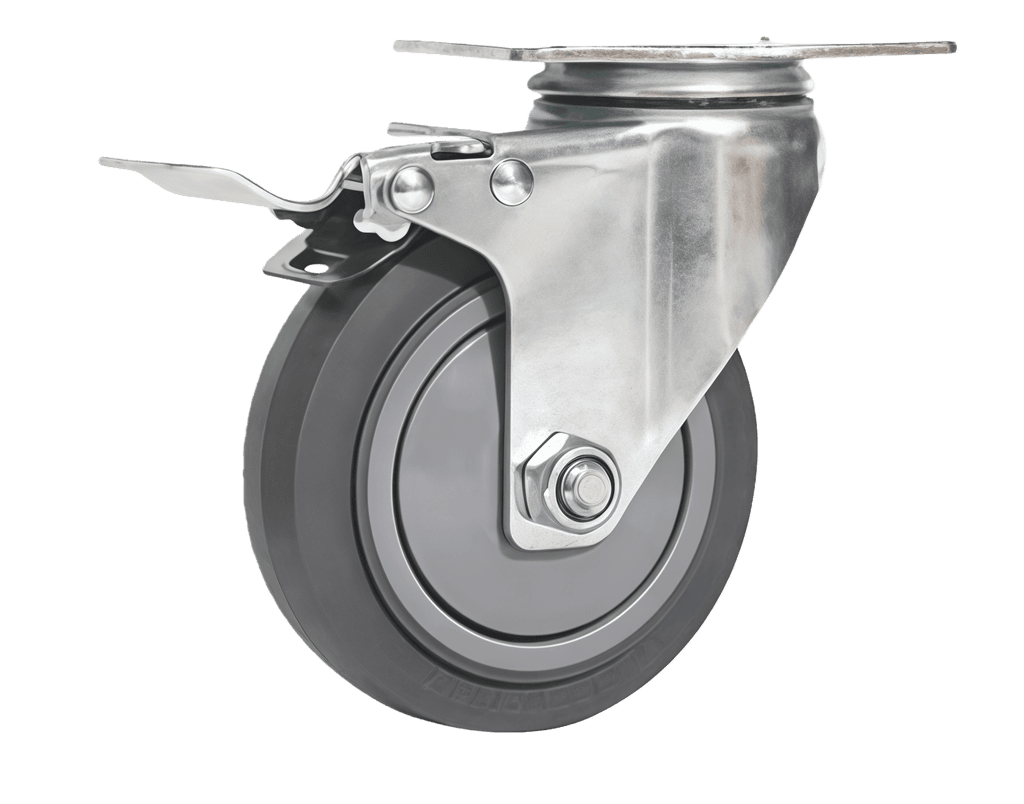

Medium Duty TPR Castor Wheel — 4" Swivel
MPSS-TPR4
Load Capacity
80 KG
Wheel Material
TPR
Wheel Size
4" (100mm)
Bearing Type
Single Ball Bearing
SKU ARCHIVE: MPSS-TPR4 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | MPSS-TPR4 |
| Load Capacity | 80 kg |
| Wheel Material | TPR |
| Bracket Type | Swivel |
| Bearing Type | Single Ball Bearing |
| Wheel Diameter | 4" (100 mm) |
| Wheel Width | 32 mm |
| Hub Bore | ⌀15 mm |
| Hub Length | 40 mm |
| Overall Height | 130 mm |
| Top Plate Size | 92x62 |
| Hole Spacing | 75x45 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | quiet-rolling, medical, office, floor-protection |
Engineering Notes.
4-inch (100×32mm) grey TPR castor with swivel top-plate (92x62mm) bracket and single ball bearing. Rated 80kg per castor. Ultra-soft thermoplastic rubber for silent, gentle rolling on sensitive floors.
