Reference Specification

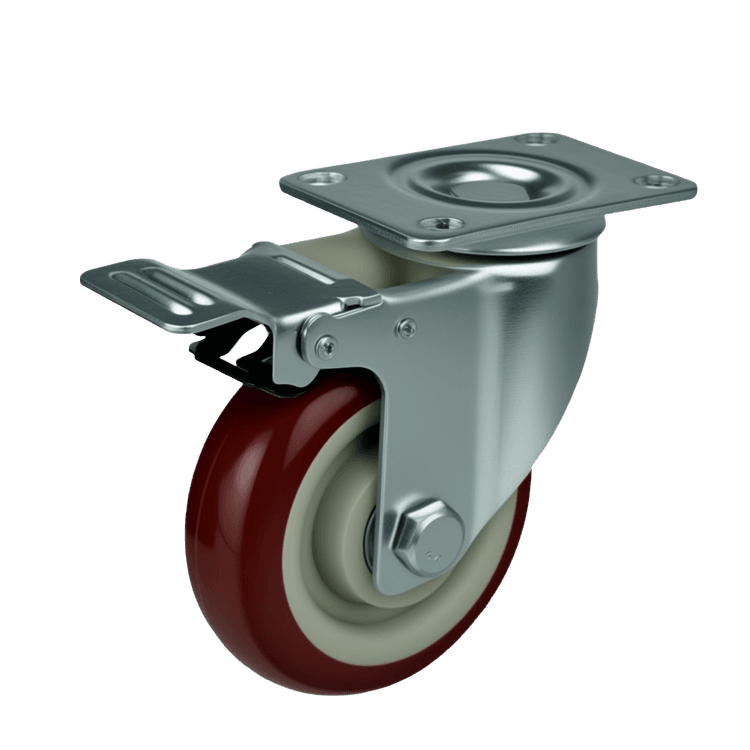

Medium Duty PVC Castor Wheel — 4" Swivel
MPDS-PVC4
Load Capacity
80 KG
Wheel Material
PVC
Wheel Size
4" (100mm)
Bearing Type
Double Ball Bearing
SKU ARCHIVE: MPDS-PVC4 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | MPDS-PVC4 |
| Load Capacity | 80 kg |
| Wheel Material | PVC |
| Bracket Type | Swivel |
| Bearing Type | Double Ball Bearing |
| Wheel Diameter | 4" (100 mm) |
| Wheel Width | 32 mm |
| Hub Bore | ⌀12 mm |
| Hub Length | 30 mm |
| Overall Height | 120 mm |
| Top Plate Size | 79x62 |
| Hole Spacing | 72x44 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | industrial, commercial, chemical-resistant |
Engineering Notes.
4-inch (100×32mm) grey PVC castor with swivel top-plate (79x62mm) bracket and double ball bearing. Rated 80kg per castor. Good chemical resistance for industrial trolleys and commercial equipment.
