Reference Specification

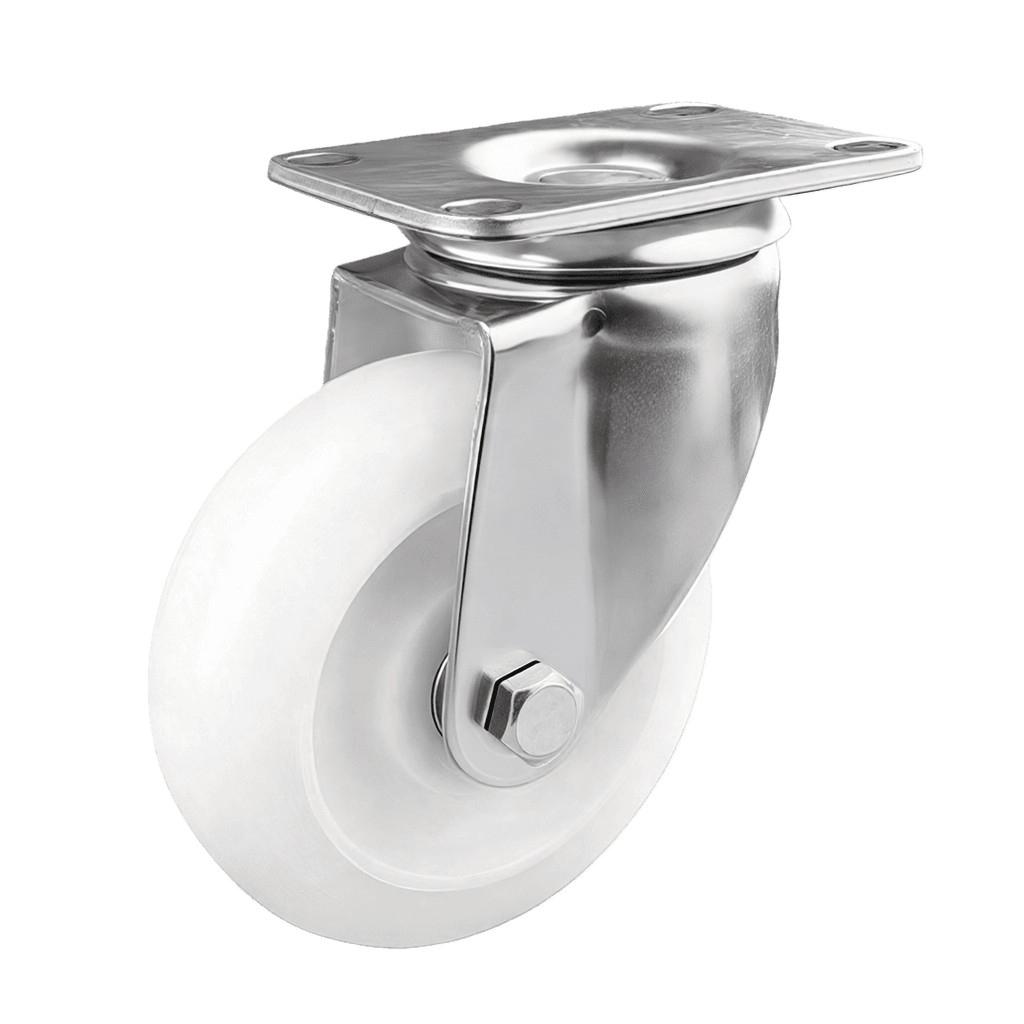

Medium Duty PP Castor Wheel — 5" Swivel
MPDS-PP5
Load Capacity
100 KG
Wheel Material
Polypropylene
Wheel Size
5" (125mm)
Bearing Type
Double Ball Bearing
SKU ARCHIVE: MPDS-PP5 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | MPDS-PP5 |
| Load Capacity | 100 kg |
| Wheel Material | Polypropylene |
| Bracket Type | Swivel |
| Bearing Type | Double Ball Bearing |
| Wheel Diameter | 5" (125 mm) |
| Wheel Width | 32 mm |
| Hub Bore | ⌀10 mm |
| Hub Length | 31 mm |
| Overall Height | 130 mm |
| Top Plate Size | 92x62 |
| Hole Spacing | 72x40 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | food-processing, cleanroom, medical, industrial |
Engineering Notes.
5-inch (125×32mm) white polypropylene castor with swivel top-plate (92x62mm) bracket and double ball bearing. Rated 100kg per castor. Lightweight and easy to clean — ideal for food processing and cleanroom trolleys.
