Reference Specification

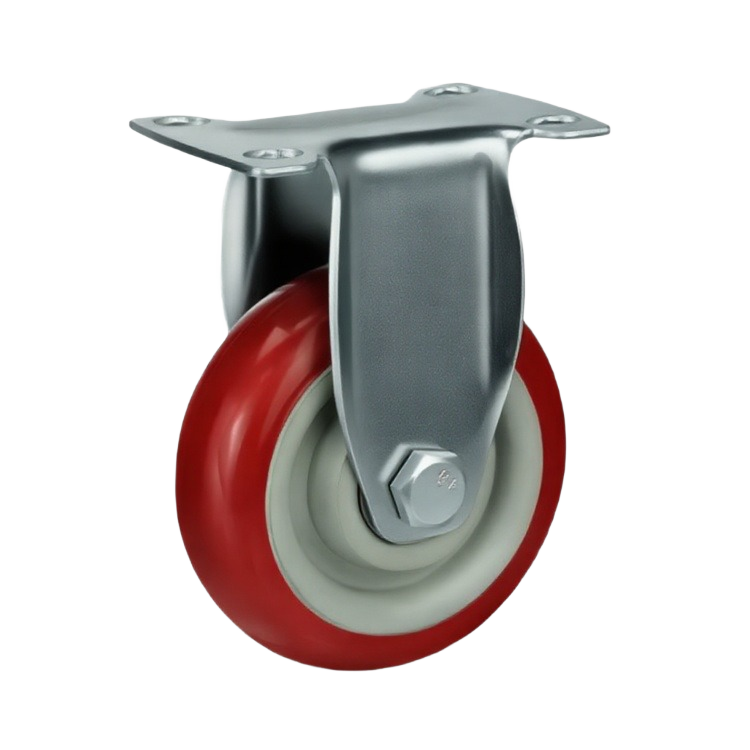

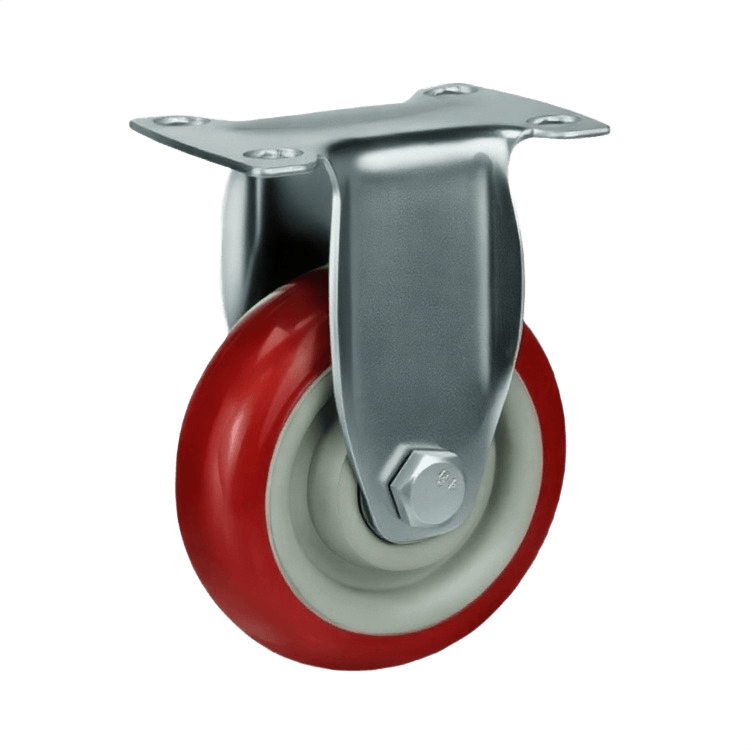

Medium Duty PU Castor Wheel (Plate Mount) — 4" Rigid
MPDR-PU4
Load Capacity
100 KG
Wheel Material
Polyurethane
Wheel Size
4" (100mm)
Bearing Type
Double Ball Bearing
Stainless Available
This model can be supplied with 304 Grade Stainless hardware for washdown environments.
SKU ARCHIVE: MPDR-PU4 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | MPDR-PU4 |
| Load Capacity | 100 kg |
| Wheel Material | Polyurethane |
| Bracket Type | Rigid |
| Bearing Type | Double Ball Bearing |
| Wheel Diameter | 100 mm |
| Wheel Width | 32 mm |
| Hub Bore | ⌀12 mm |
| Hub Length | 30 mm |
| Overall Height | 111 mm |
| Top Plate Size | 79x62 |
| Hole Spacing | 72x44 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | industrial, medical, food-processing, commercial |
Engineering Notes.
Medium-duty 3-inch red polyurethane castor wheel with double ball bearing. Hard-wearing PU compound protects floors. Zinc-plated top plate swivel configuration. 80kg load capacity.
Non-Standard Specs?
"We stock many variants not shown online. We can source custom systems from our principals within 10 days."
