Reference Specification

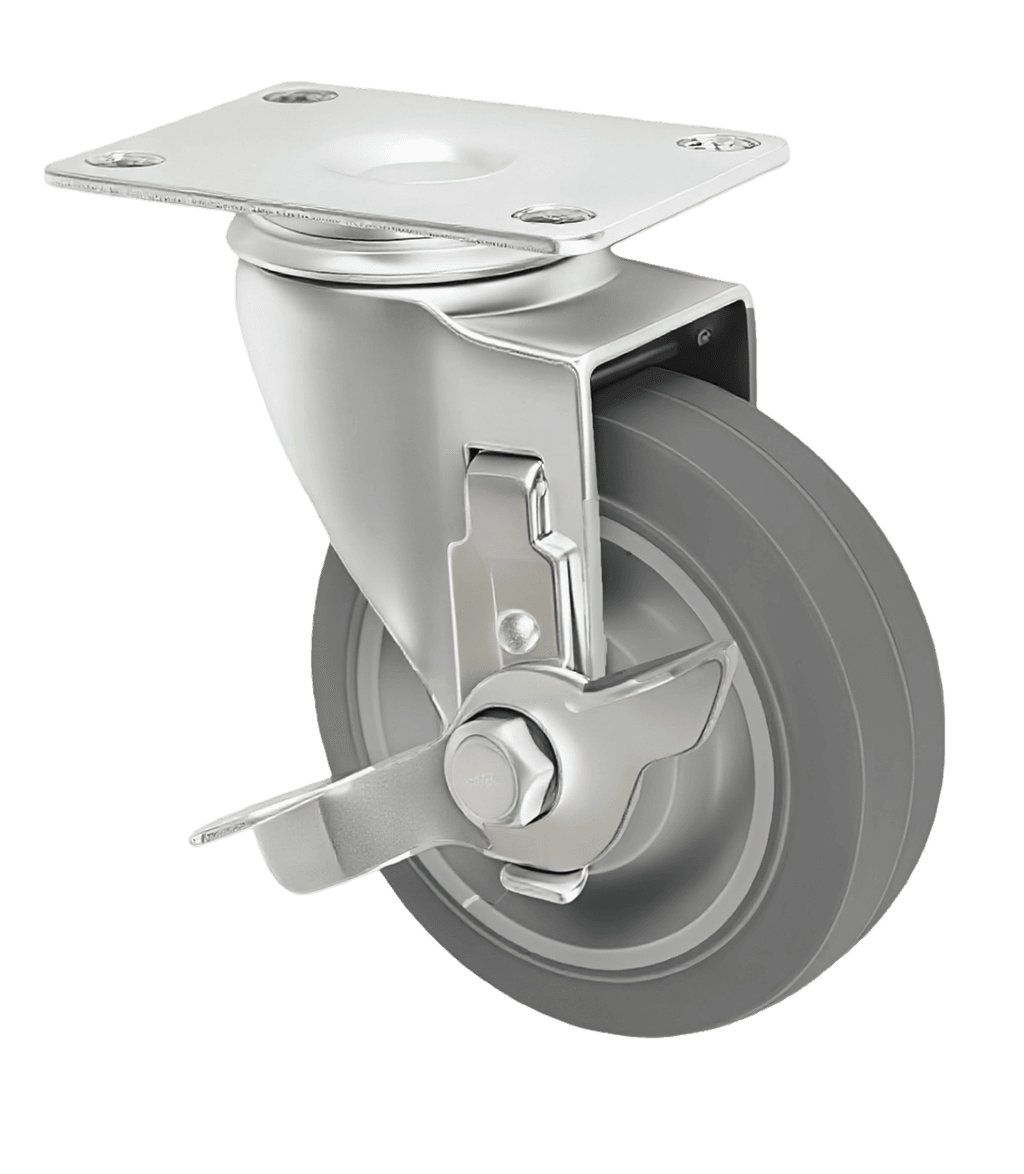

Medium Duty Rubber Castor Wheel — 3" Side Brake
MPDB-RB3
Load Capacity
70 KG
Wheel Material
Rubber
Wheel Size
3" (75mm)
Bearing Type
Double Ball Bearing
SKU ARCHIVE: MPDB-RB3 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | MPDB-RB3 |
| Load Capacity | 70 kg |
| Wheel Material | Rubber |
| Bracket Type | Side Brake |
| Bearing Type | Double Ball Bearing |
| Wheel Diameter | 3" (75 mm) |
| Wheel Width | 32 mm |
| Hub Bore | ⌀10 mm |
| Hub Length | 40 mm |
| Overall Height | 110 mm |
| Top Plate Size | 79x62 |
| Hole Spacing | 72x44 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | medical, warehouse, vibration-damping, floor-protection |
Engineering Notes.
3-inch (75×32mm) grey rubber castor with side brake top-plate (79x62mm) bracket and double ball bearing. Rated 70kg per castor. Soft rubber wheel absorbs vibration and protects sensitive floor surfaces.
