Reference Specification

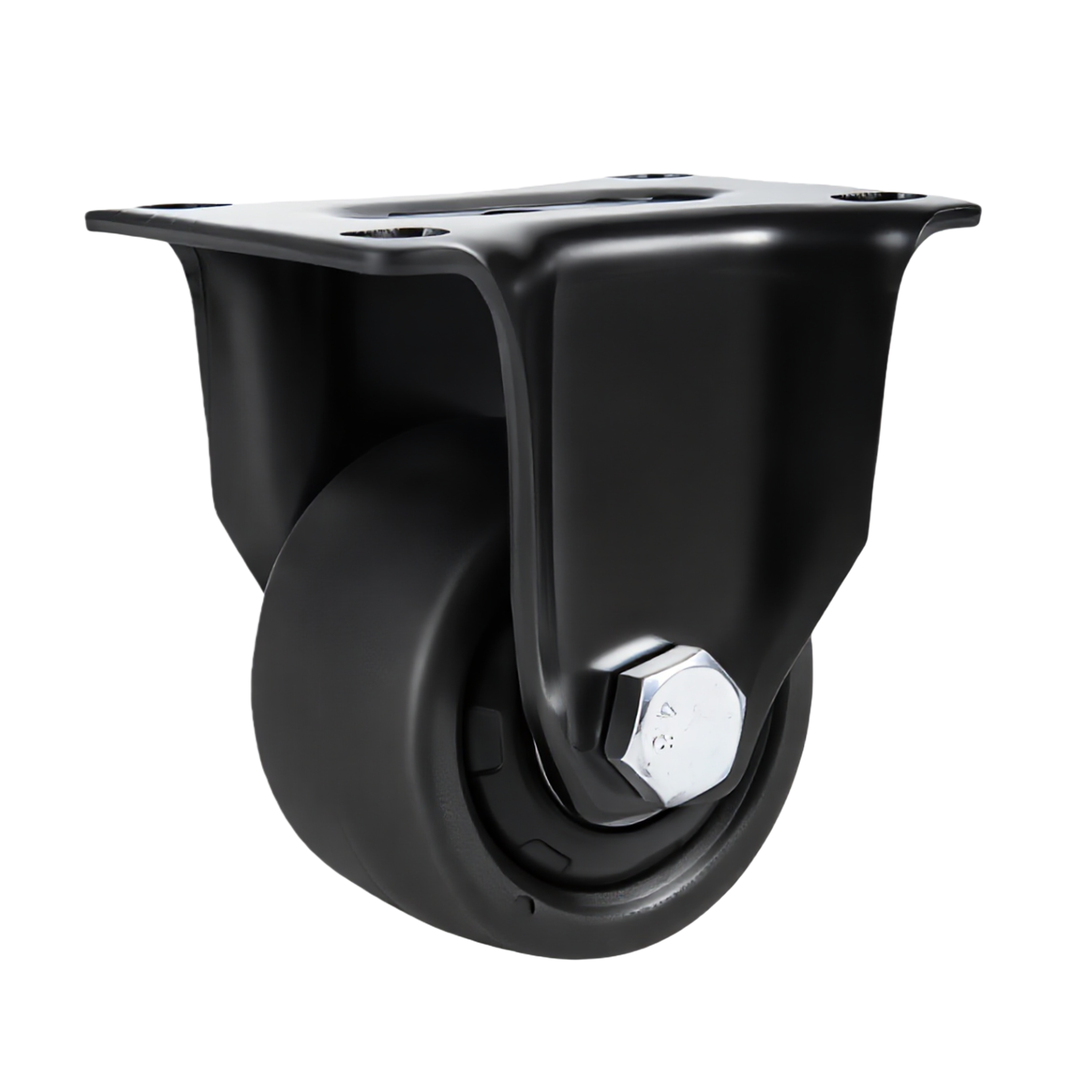

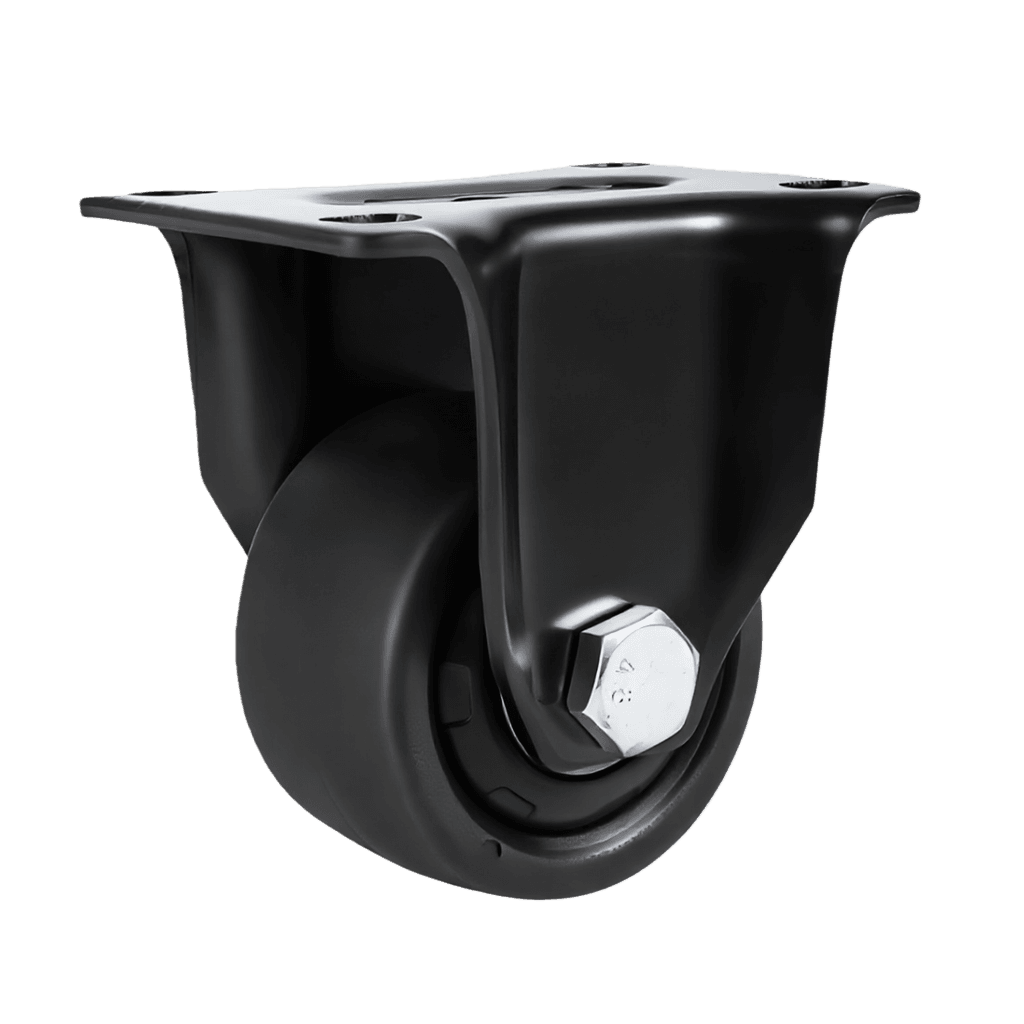

Heavy Duty Low-Gravity PP Castor — 1.5" Rigid
HPDR-LG40
Load Capacity
40 KG
Wheel Material
Polypropylene
Wheel Size
1.5" (40mm)
Bearing Type
Double Ball Bearing
SKU ARCHIVE: HPDR-LG40 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | HPDR-LG40 |
| Load Capacity | 40 kg |
| Wheel Material | Polypropylene |
| Bracket Type | Rigid |
| Bearing Type | Double Ball Bearing |
| Wheel Diameter | 1.5" (40 mm) |
| Wheel Width | 20 mm |
| Hub Bore | ⌀9 mm |
| Hub Length | 30 mm |
| Overall Height | 44 mm |
| Top Plate Size | 64x50 |
| Hole Spacing | 46x32 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | semiconductor, cleanroom, sensitive-equipment, laboratory, low-gravity |
Engineering Notes.
1.5-inch (40×20mm) black polypropylene castor with rigid top-plate (64x50mm) bracket and double ball bearing. Rated 40kg per castor. Ultra-low centre of gravity design for stability when transporting sensitive equipment.
